Inventor

A bluetooth automotive alignment module using embedded systems that allows "do-it yourselfers" to align their vehicles wheels/tires at home, without the need of an alignment rack. All hardware and firmware was created. *White paper upon request*

Final MEMS Sensor

Final PCB design of module using 9DOF IC and CC3200 for WiFi connectivity.

Prototype

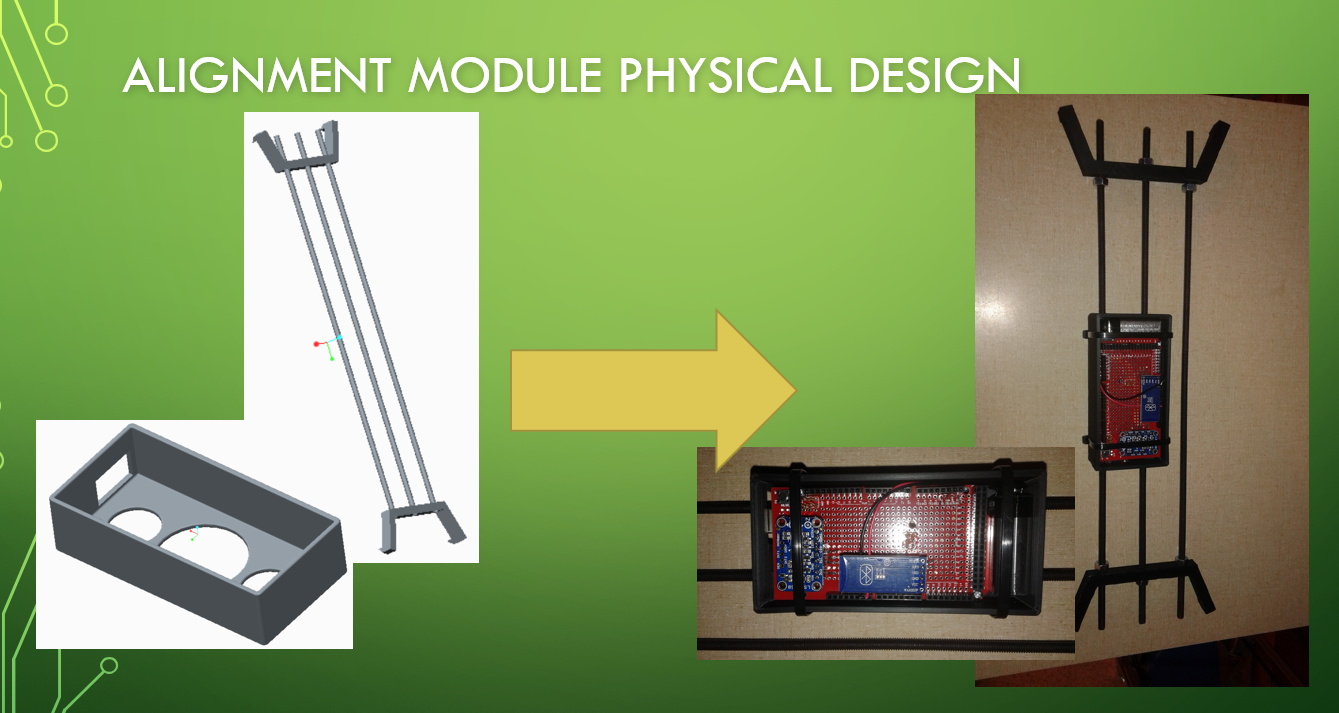

Prototype that was developed and tested using an Arduino Mega, HC-06 Bluetooth Module and a LSM9DS0 9DOF Breakout Board.

Video demonstration of Prototype alignment module
