Developed, built and tested a WiFi enabled pH and electrical conductivity sensor PCB that works with any pH/EC probe. This includes PCB ground isolation and layout techniques to ensure probe accuracy and minimize noise.

KiCad Design

3D rendering of finished board

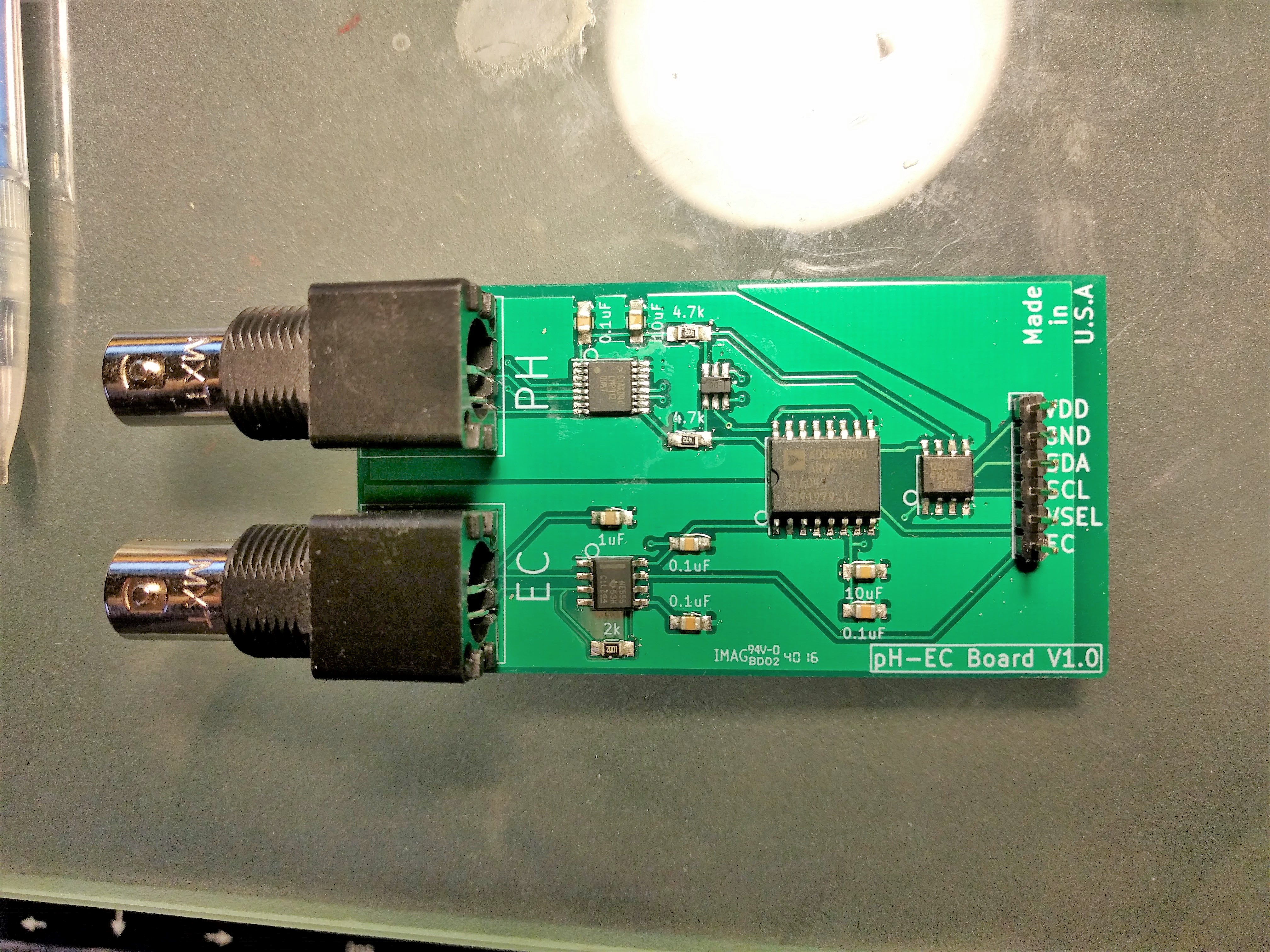

Completed Board

Assembled and ready for testing

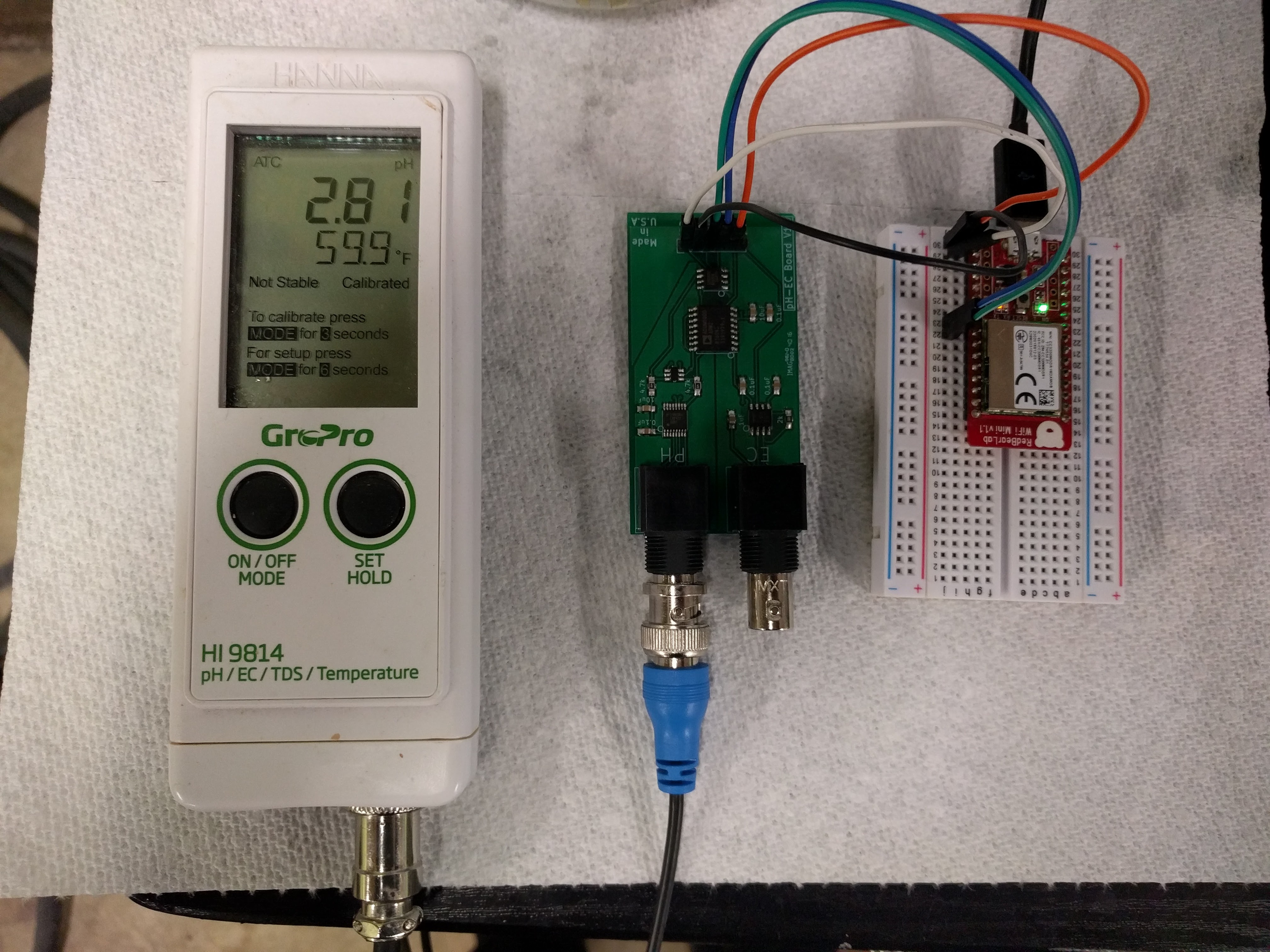

Testing!

Testing against a commercial meter
